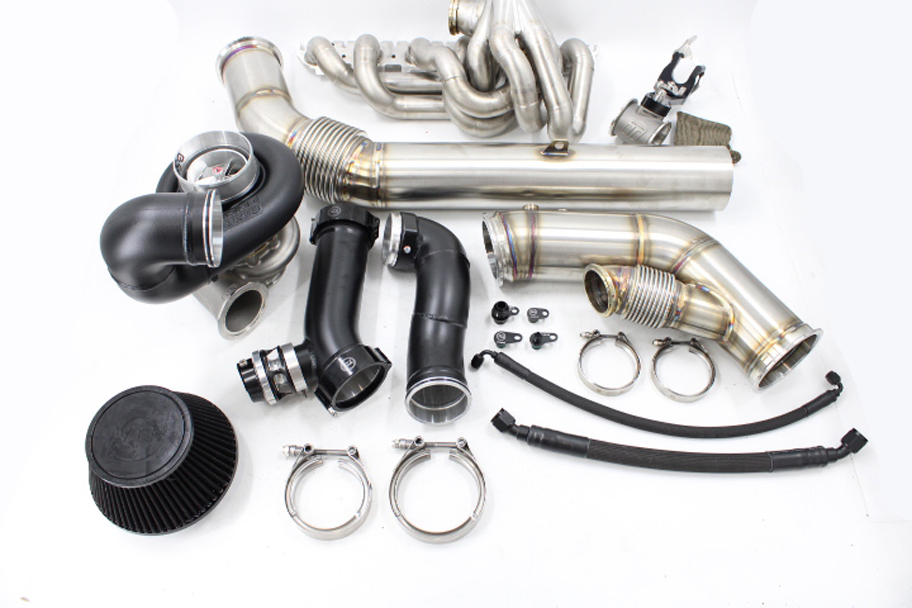

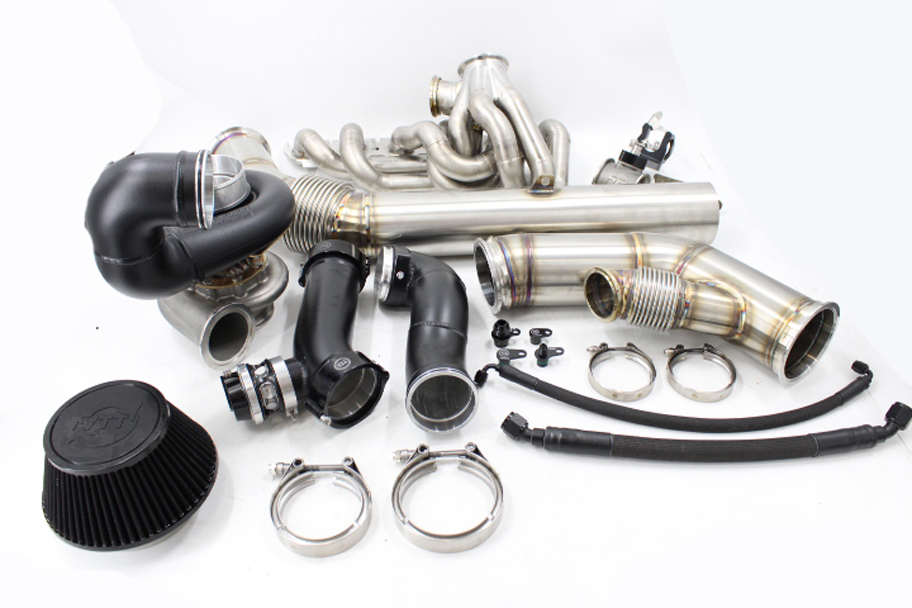

Complete VTT-FAB B58 single turbo kit with manifold, turbocharger, downpipe, intake, and hardware.

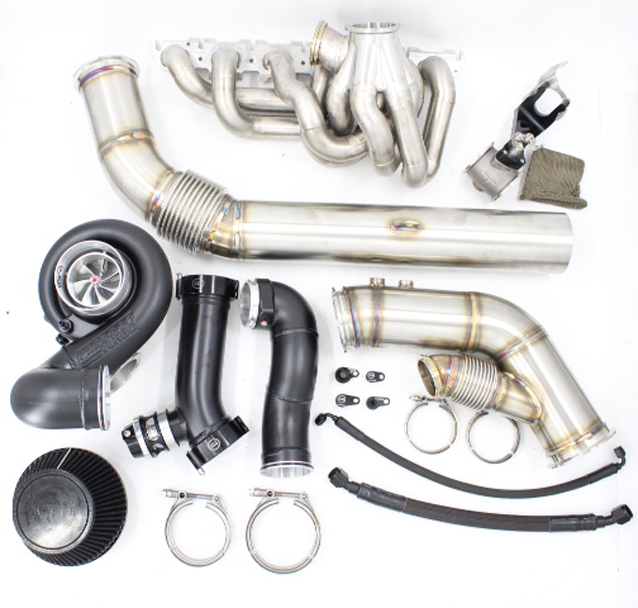

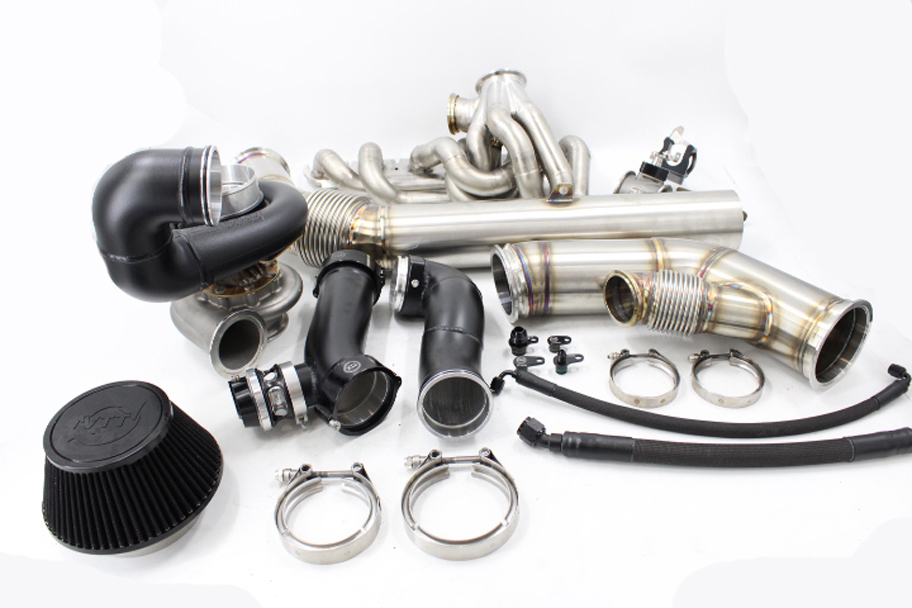

VTT-FAB B58 single turbo kit components including turbocharger, stainless steel manifold, downpipe, clamps, and hardware.
Vargas Turbocharger Technologies B58 single turbo kit with factory-style external wastegate and high-flow charge pipes.

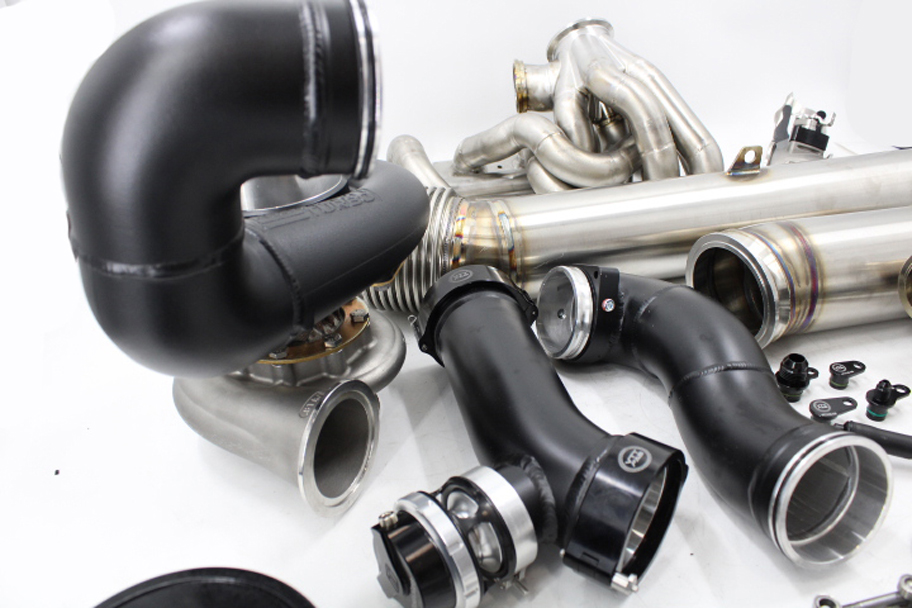

Close-up of VTT-FAB B58 single turbo kit with turbo, charge pipes, and high-flow manifold.
Vargas Turbocharger B58 single turbo kit comes with stainless steel piping, equal-length manifold, and complete hardware.
Complete VTT-FAB B58 single turbo kit with manifold, turbocharger, downpipe, intake, and hardware.

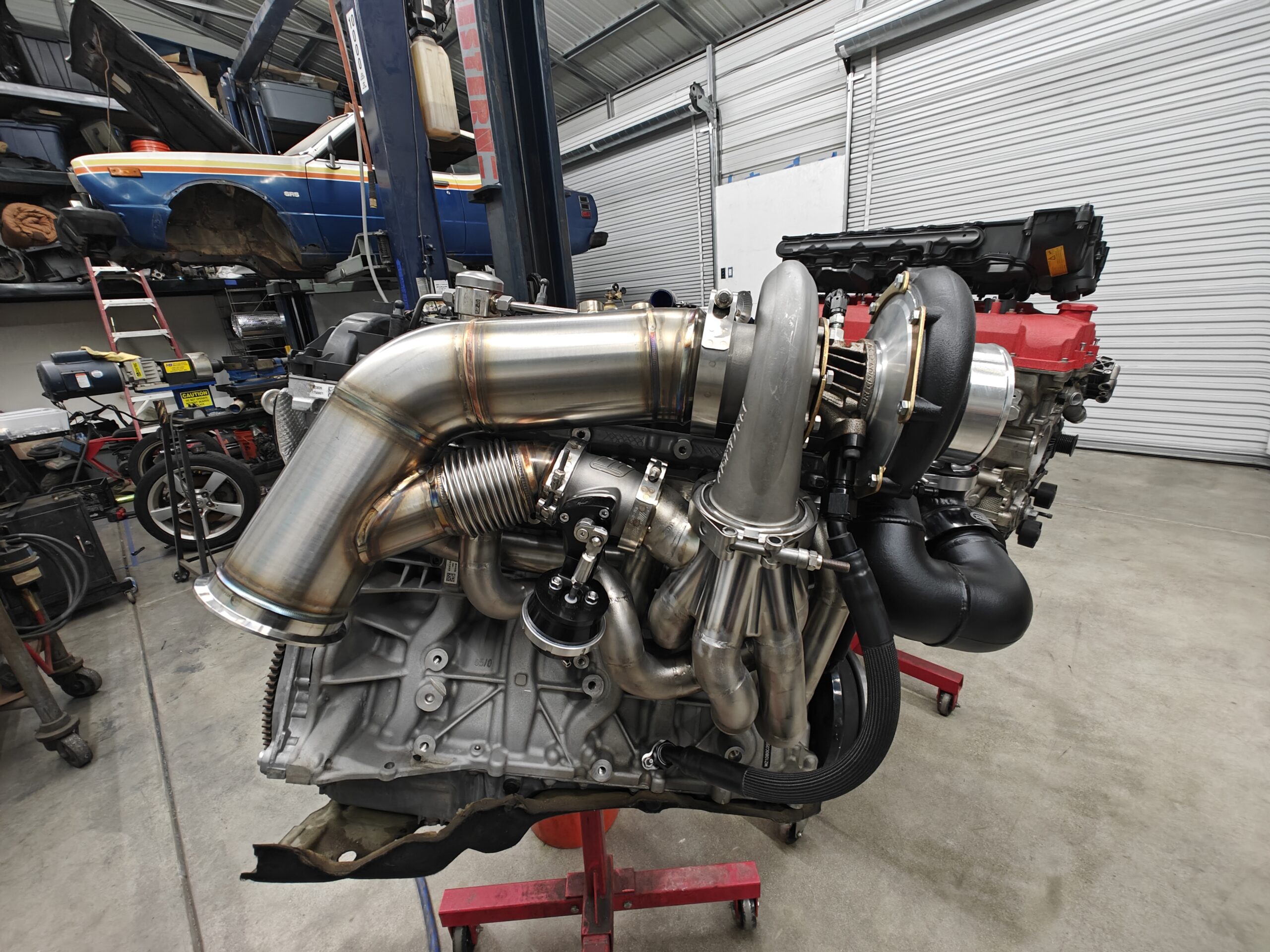

Performance-engineered single turbo kit mounted on B58 engine, highlighting stainless manifold and turbo in garage.

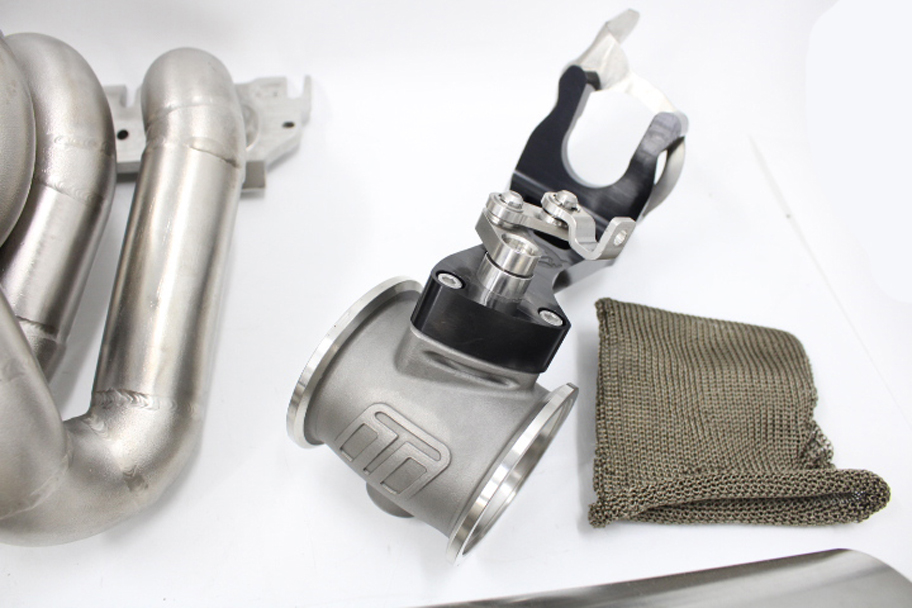

Turbo kit detail showing wastegate actuator, manifold tubing, and heat shield for top-mount B58 single turbo build.
Complete performance upgrade kit for B58 platform, with turbo assembly, charge pipes, downpipe and essential accessories.

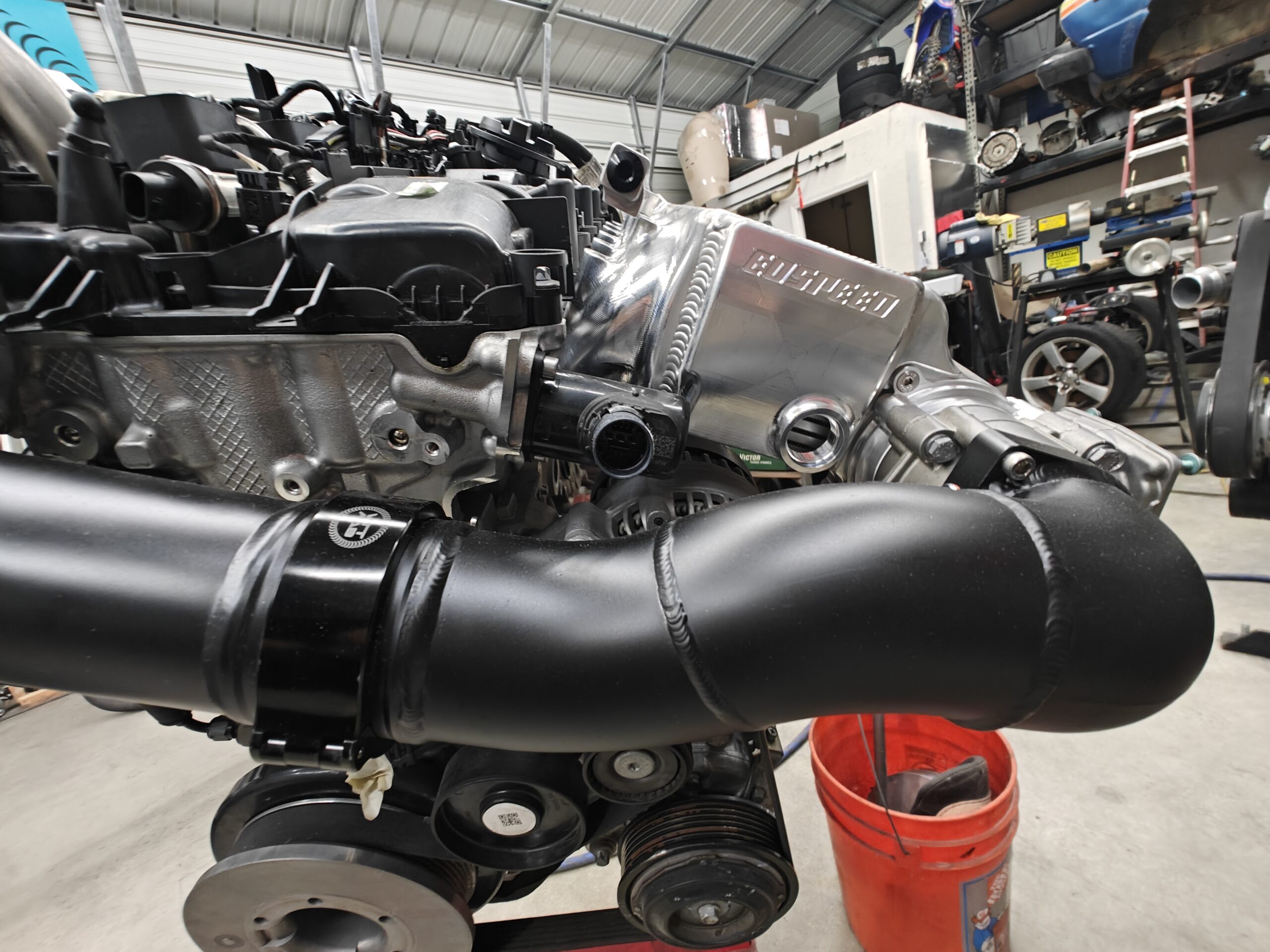

Precision-machined B58 intake manifold and black charge pipe installed on BMW engine in workshop environment.

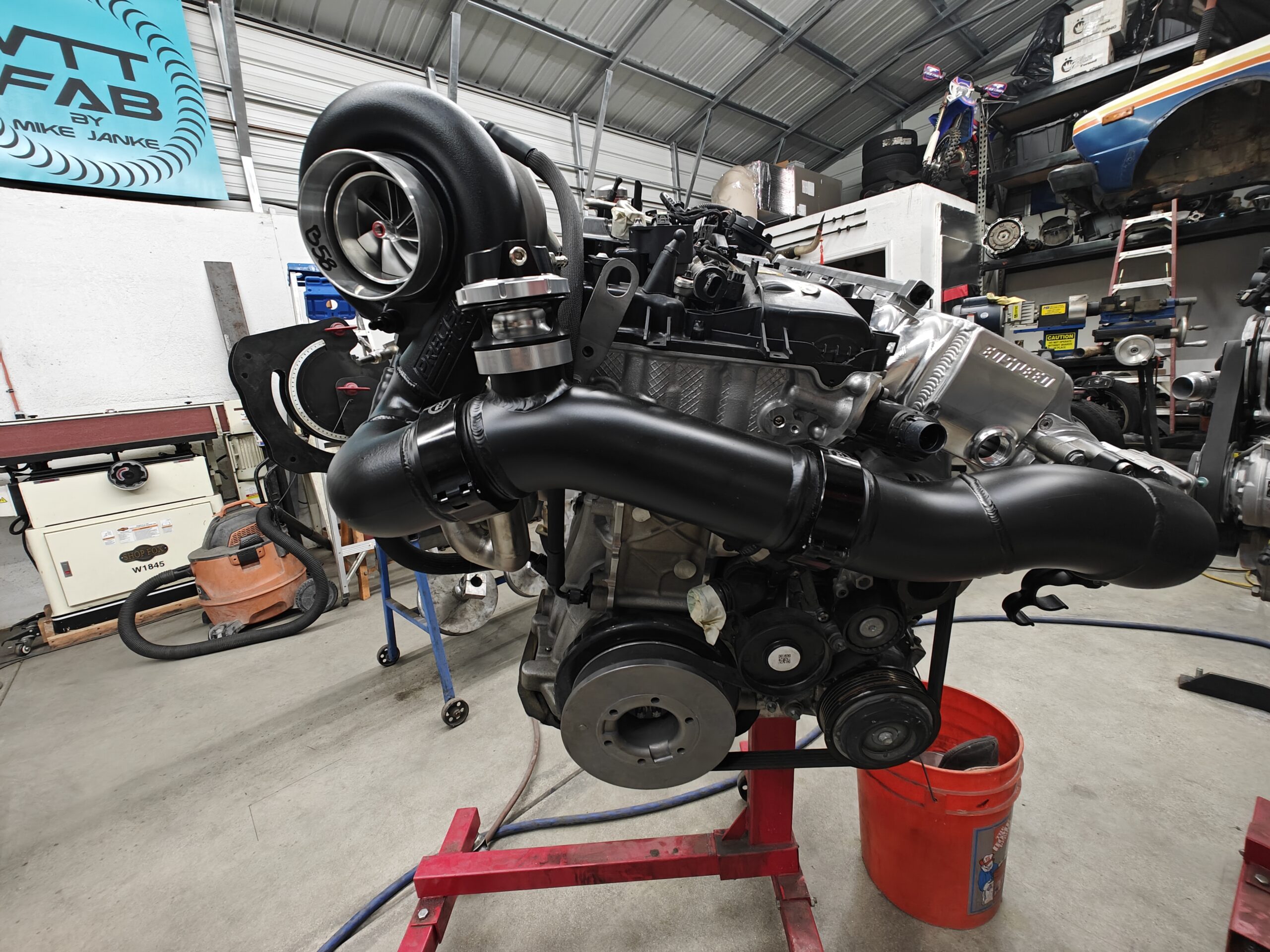

Installed B58 single turbo kit with large turbocharger, custom charge piping, and Boosted intake manifold on BMW engine.

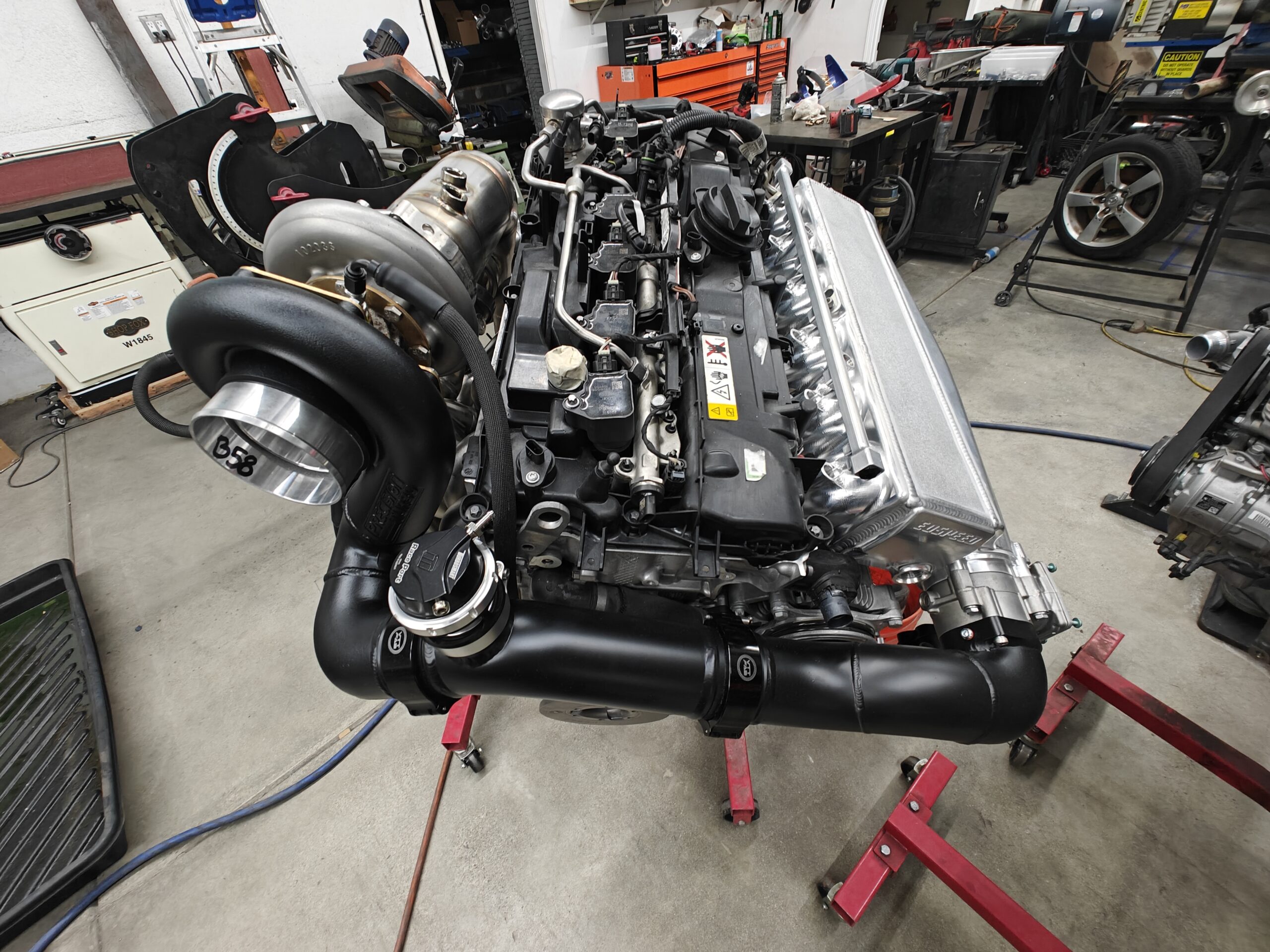

Top-mount B58 single turbo kit, featuring black charge piping and detailed billet intake manifold, in a mechanic's shop.

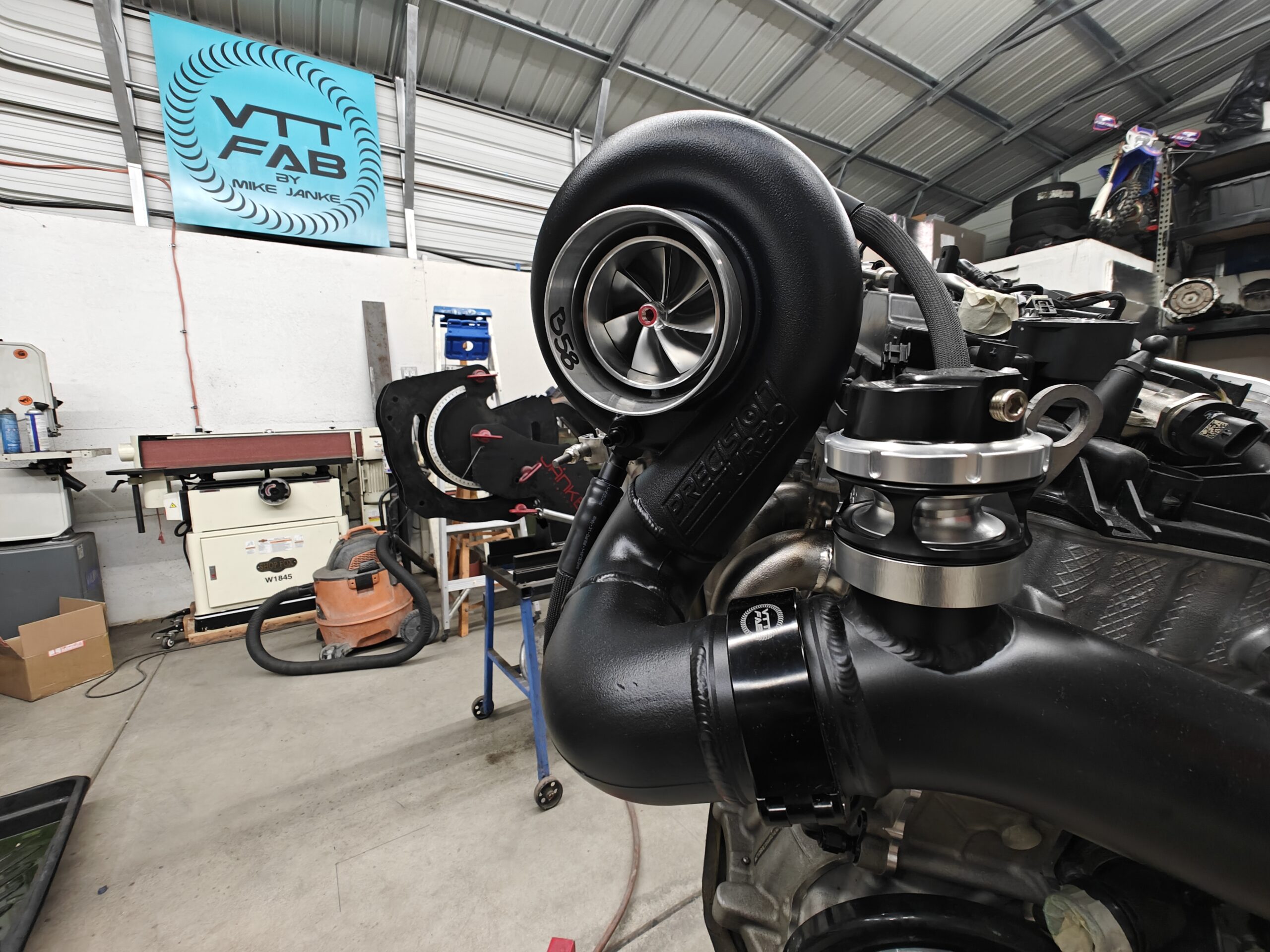

B58 engine setup showing front-mount turbocharger, heavy-duty black charge piping, and mounted blow-off valve.

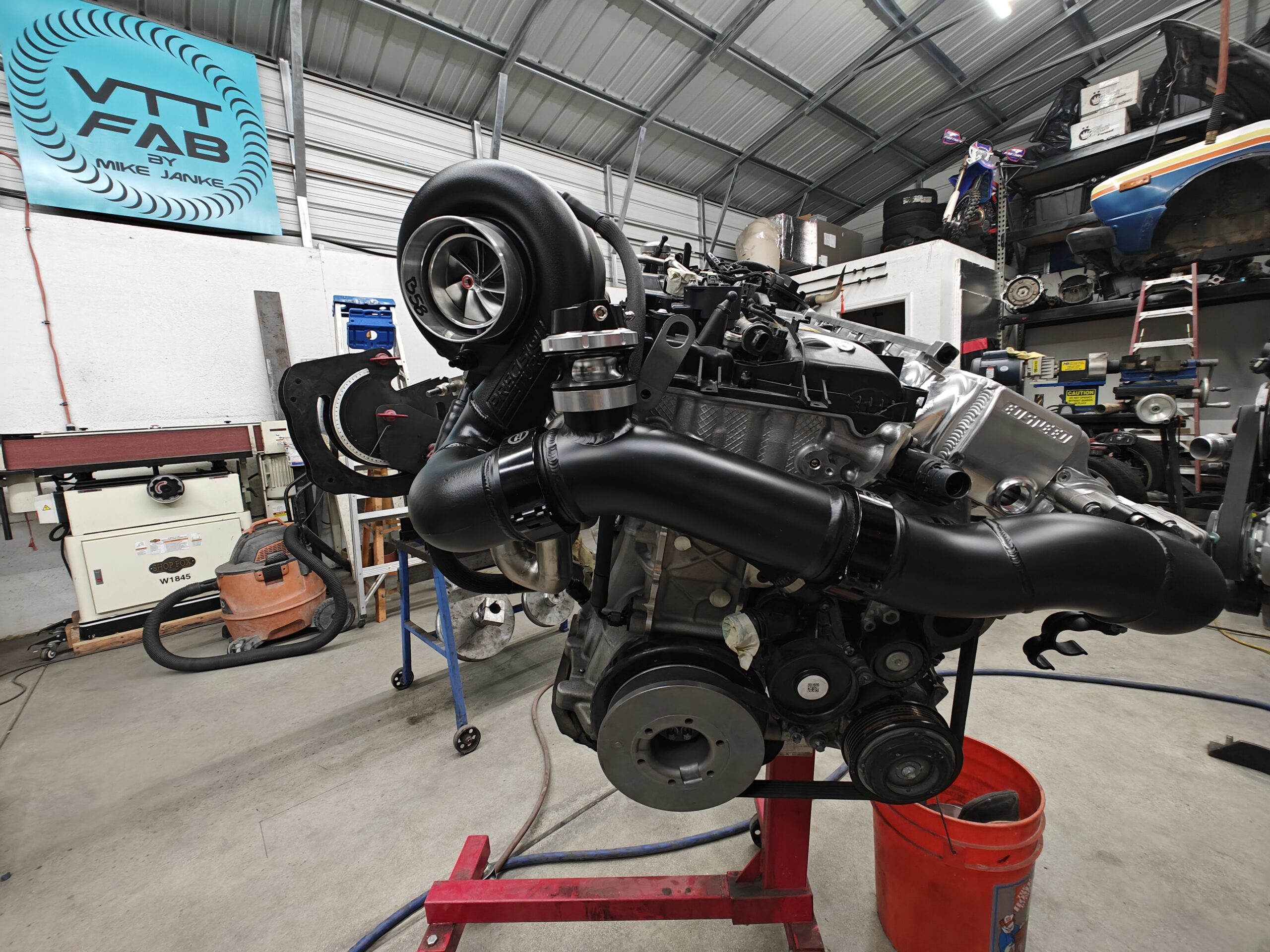

BMW B58 engine with VTT-FAB single turbo kit installed, featuring large Precision Turbo and custom intake manifold.

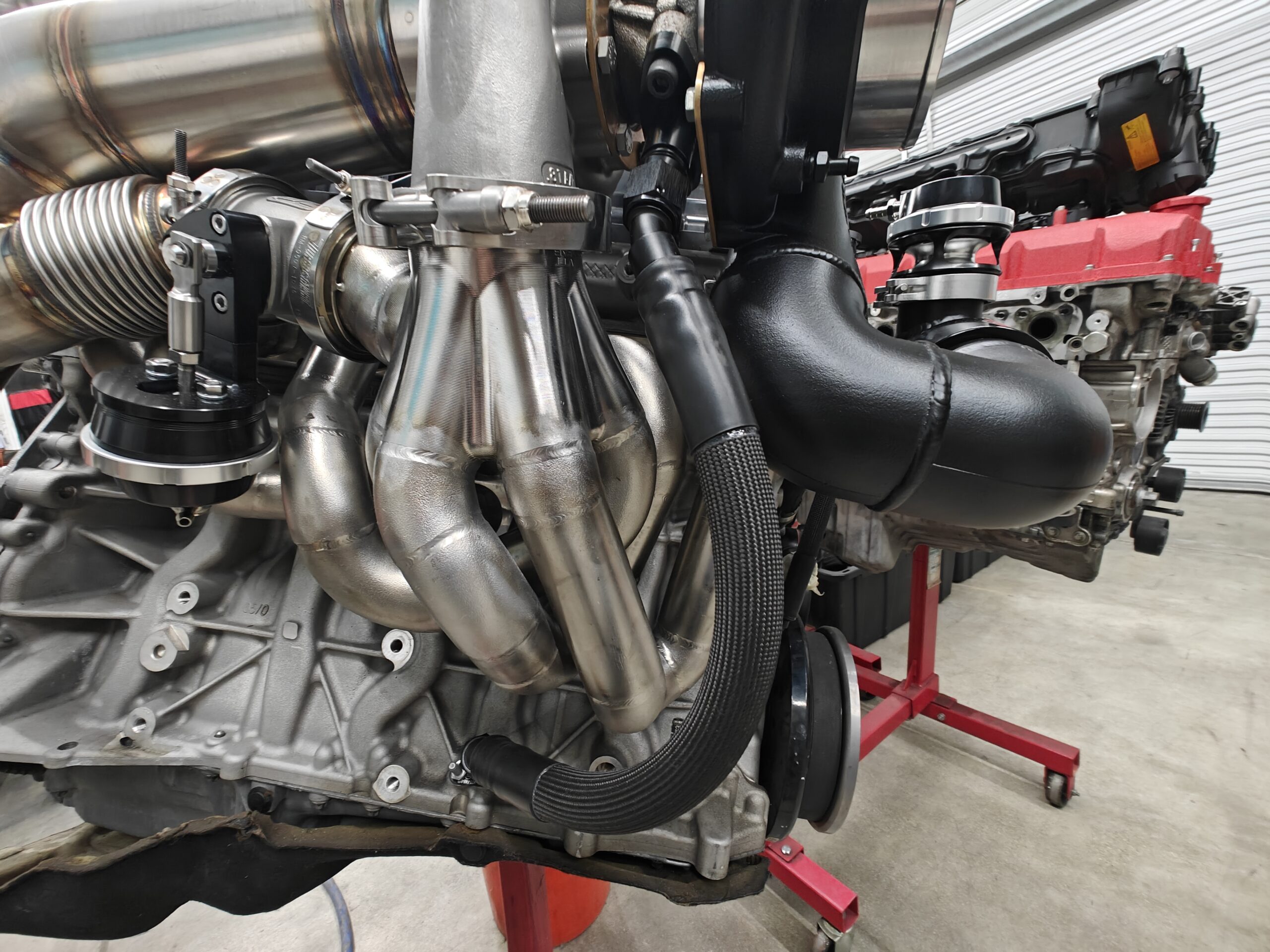

Close-up of B58 engine with custom stainless equal-length turbo manifold, black charge pipe, and high-performance wastegate.

VTT-FAB B58 Factory Control EWG Top Mount Single Turbo kit

Price range: $7,349.99 through $11,089.99

-

VTT-FAB B58 Factory Control EWG Top Mount Single Turbo kit

For BMW G-Series & Toyota A91 6-Port B58 Platforms

VTT-FAB is proud to offer the premiere top-mount single turbo system for the BMW G-Series and Toyota A91 B58 platforms. This kit is 100% made in the USA at our Hayward, CA facility, using only the highest-quality materials and components.

At the core is a hand-fabricated equal-length 321 stainless steel manifold with billet flanges, designed for maximum flow, durability, and that signature 6-into-1 turbo sound. The system is paired with our factory-controlled external wastegate setup, featuring a Turbosmart 60mm Straight Gate. This innovative design allows full external gate control through the OEM ECU — no additional boxes, MAC solenoids, or vacuum/boost lines required. Simply reuse your factory actuator with our adapter for seamless, plug-and-play control from 0 PSI all the way up to your turbo’s limits.

Unlike other kits, the VTT-FAB system uses no silicone couplers. Instead, we provide VTT-FAB HD clamps to eliminate the risk of blown boost hoses under extreme load.

⚠️ Important Notes:

  • Every VTT-FAB kit is built to order and cannot be canceled once fabrication begins. Please order carefully.

  • If your kit of choice is listed out of stock, email [email protected] for current build times.

  • Garrett turbo options are oil-cooled only (no water lines). This is perfectly fine for street and drag applications. For extended track/road-race use, we recommend adding water cooling

We will use ISTA and precalibate your actuator so you do not have to do it before install. This will save you the hassle, and time of doing this, and also is good for people that do not have access to ISTA software. (Please note you will still need to disable one wastegate bank in your tuning software)

Please choose if you want an air filter for your kit or a Velocity Stack

Add Cerakote to your hot parts (manifold, downpipe, and turbine housing) to help reduce underhood temps, and improve spool, please let us know the color you would like.
PLEASE NOTE – ALL COATING CAN ADD A MINIMUM OF 3 WEEKS TO YOUR ORDER, BUT CAN BE UPWARDS 0F 5-6 WEEKS DEPENDING ON HOW BUSY THE COATING SHOP IS. THIS IS ON TOP OF THE KIT BUILD TIME. PLEASE BE AWARE ONCE YOU ORDER A KIT WITH COATNG THE KIT CANNOT BE CANCELLED FOR ANY REASON. Color choices can be found here – https://www.cerakote.com/shop/cerakote-coating?finishes=cera_1800

Add Powder Coat to your cold side parts (Compressor housing, and Charge pipe) Please let us know the color you would like.
PLEASE NOTE – ALL COATING CAN ADD A MINIMUM OF 3 WEEKS TO YOUR ORDER, BUT CAN BE UPWARDS 0F 5-6 WEEKS DEPENDING ON HOW BUSY THE COATING SHOP IS. THIS IS ON TOP OF THE KIT BUILD TIME. PLEASE BE AWARE ONCE YOU ORDER A KIT WITH COATNG THE KIT CANNOT BE CANCELLED FOR ANY REASON.

Add a BOV to your turbo kit

Choose the downpipe style you want. Factory style will bolt to any factory style midpipe with the 80mm slip fit. Race style will be a single 4″ back with an option to an open V-band for coupling an existing single mid pipe, or a turn down.

Please choose the correct charge pipe based on your intake manifold/Charger Cooler.
PLEASE NOTE! The factory option DOES NOT support PI spacers. We use no silicone in our kit, and the charge pipes are an exact fit.

WE HIGHLY, HIGHLY SUGGEST RUNNING OUR ONE WAY BREATHER WHEN ADDING A SINGLE TURBO KIT, AS YOU DELETE MOST OF THE PCV SYSTEM, FAILURE TO ADD THIS OR SOME SORT OF CRANKCASE VENTING LIKELY WILL RESULT IN CRANKCASE PRESSURE, AND POSSIBLY SMOKING.

Warranty: 12 Months

SKU: VTT-FAB-B58-SINGLE Categories: , , , , , , , , , , , , , , , , , , , , ,

Description

VTT-FAB B58 Factory Control EWG Top Mount Single Turbo kit

For BMW G-Series & Toyota A91 6-Port B58 Platforms

VTT-FAB is proud to offer the premiere top-mount single turbo system for the BMW G-Series and Toyota A91 B58 platforms. This kit is 100% made in the USA at our Hayward, CA facility, using only the highest-quality materials and components.

At the core is a hand-fabricated equal-length 321 stainless steel manifold with billet flanges, designed for maximum flow, durability, and that signature 6-into-1 turbo sound. The system is paired with our factory-controlled external wastegate setup, featuring a Turbosmart 60mm Straight Gate. This innovative design allows full external gate control through the OEM ECU — no additional boxes, MAC solenoids, or vacuum/boost lines required. Simply reuse your factory actuator with our adapter for seamless, plug-and-play control from 0 PSI all the way up to your turbo’s limits.

Unlike other kits, the VTT-FAB system uses no silicone couplers. Instead, we provide VTT-FAB HD clamps to eliminate the risk of blown boost hoses under extreme load.

⚠️ Important Notes:

  • Every VTT-FAB kit is built to order and cannot be canceled once fabrication begins. Please order carefully.

  • If your kit of choice is listed out of stock, email [email protected] for current build times.

  • Garrett turbo options are oil-cooled only (no water lines). This is perfectly fine for street and drag applications. For extended track/road-race use, we recommend adding water cooling lines.

Features

  • Fully fabricated in-house (Hayward, CA) with U.S.-sourced parts

  • Equal-length 321 stainless manifold with billet collector

  • Full 4″ TIG-welded downpipe (factory-style termination or race 4″ single with optional turndown)

  • VTT-FAB factory-controlled Turbosmart straight gate system — OEM ECU boost control ready

  • 1.25″ primaries for faster spool & high exhaust velocity

  • Zero external boost control needed

  • That iconic 6-into-1 turbo sound no divided housing can match

  • Charge pipe flanged for Turbosmart or Tial BOV (with optional block-off plate)

  • No silicone connectors — only VTT-FAB HD clamps for ultimate reliability

Kit Contents

  • Manifold (VTT-FAB-074) w/ 3” V-band clamp

  • Downpipe w/ V-band clamps (options for factory-style, race midpipe, or turndown)

  • Charge pipe + 2x VTT-FAB 3″ HD clamps

  • Oil feed line (16” hose, -4AN swivel fittings)

  • Oil drain line (13” hose, -10AN swivel fittings)

  • Turbosmart 60mm Straight Gate + 2x V-band clamps

  • Wastegate accessories: heat sleeve, wiring harness (18” extension), arms & clips

  • Fittings & adapters:

    • -4AN 1/8” NPT steel feed fitting

    • VTT-FAB-083 drain

    • 040 10AN

    • 036 H2O block

    • 048 feed

    • 042 vent block

    • Vacuum/boost adapter

  • Hardware: M8 drain bolts (x2), exhaust nuts (x8), lower exhaust bolts (x8)

  • Gaskets: head-to-manifold gasket (x1)

  • Air filter or velocity stack (x1)

  • Optional: VTT-FAB turbo blanket, Turbosmart/Tial BOV, or block-off plate

✅ Made in the USA
✅ No compromises in quality
✅ Plug-and-play boost control with OEM ECU

The VTT-FAB B58 Top-Mount Single Turbo Kit is the ultimate solution for enthusiasts who demand maximum performance, durability, and simplicity — without sacrificing control.

Additional information

Weight 96 lbs
Dimensions 36 × 24 × 24 in
Turbocharger Choice

PTE Next Gen 6670, PTE Next gen 6870, PTE Gen 2 6870, PTE Next Gen 7275, PTE Sportsman7480, PTE Next Gen 7675, Turbosmarts TS1 6870, Turbosmart TS1 7675, Turbosmart TS1 7880, No Turbo ( Iunderstand this will require me to source my own turbo, and fabricate the compressor housing to fit the charge pipe), Garrett GXR 42-68, Garrett GXR 42-72, Garrett GXR 45-67, Garrett GXR 45-73
Turbine Housing AR Choice

Mid-Frame T4 V-Band .81, Mid-Frame T4 V-Band .96, Mid-Frame T4 V-Band 1.24, PTE Sportsman 1.00, PTE Sportsman 1.15, PTE Sportsman 1.28, No Turbo, Garrett V-Band 1.01AR, Garrett V-Band 1.15AR
