VTT F9X M5/M8 Rear Differential Lockdown Kit

Looking to tighten up the rear differential on your F9X M5 or M8 and eliminate unwanted differential movement during hard launches, aggressive shifting, and high-horsepower driving? VTT has you covered.

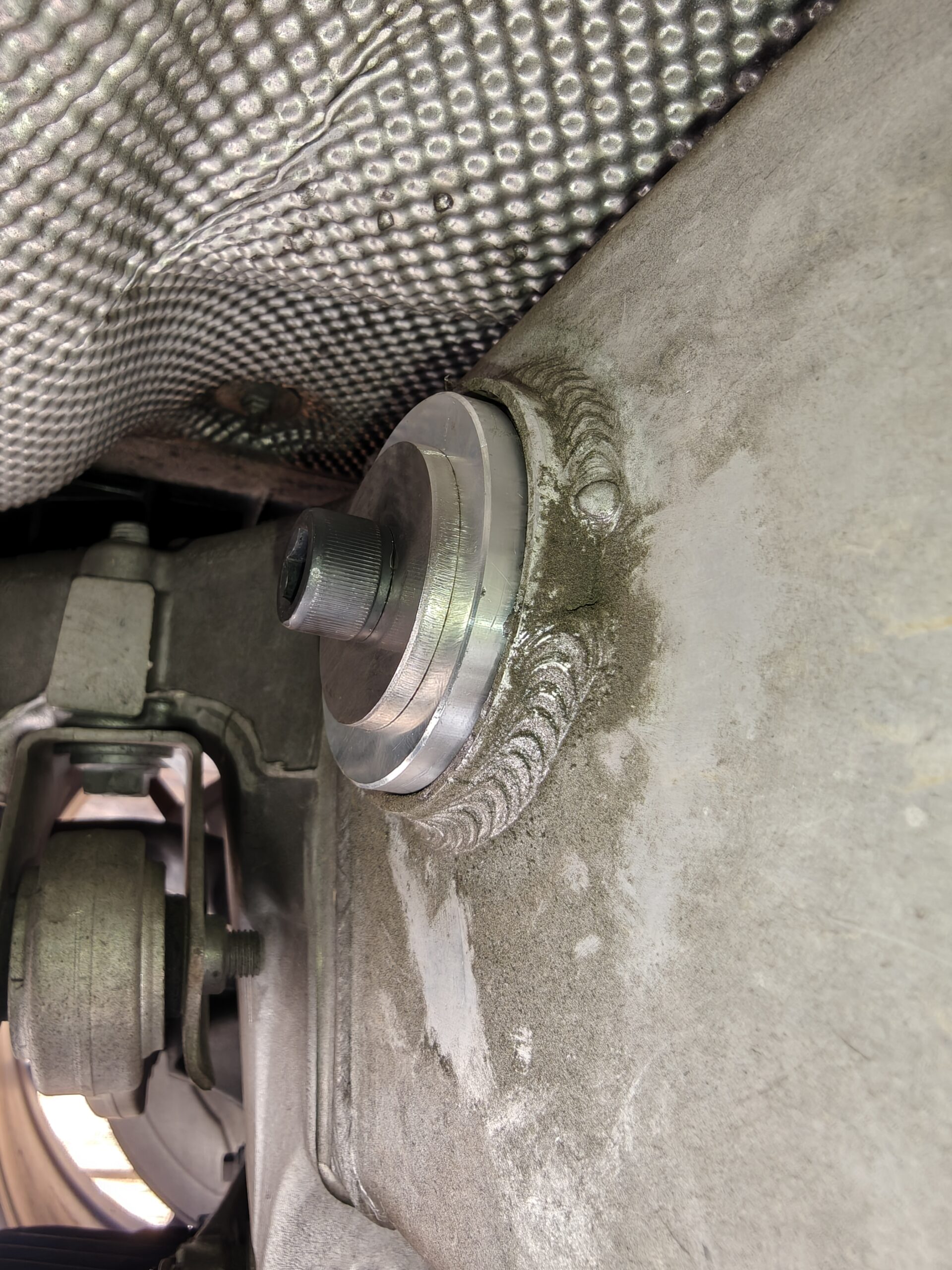

Our Rear Differential Lockdown Kit is designed to significantly reduce differential movement by reinforcing the factory rear differential mounting point. The precision-machined billet insert fills the voids in the factory rubber bushing, dramatically limiting deflection while maintaining the majority of the OEM ride quality and compliance.

The result is a more planted and predictable rear end, improved power transfer to the ground, reduced driveline shock, and less differential movement under high-load conditions.

Unlike solid-mounted solutions, the VTT Lockdown Kit retains the factory bushing while reinforcing it, providing an excellent balance between performance and daily drivability.

Features

• CNC-machined billet aluminum insert
• Fills the voids in the factory differential bushing
• Reduces differential movement under load
• Improves launch consistency and drivetrain stability
• Maintains OEM-style ride compliance
• Direct bolt-in installation
• Designed for high-performance and high-horsepower applications

Installation

Installation is straightforward and can be completed with basic hand tools.

1. Support the differential.
2. Remove the factory rear differential bolt.
3. Press the billet insert into the factory bushing using the supplied hardware.
4. Install the supplied upgraded hardware and torque to specification.

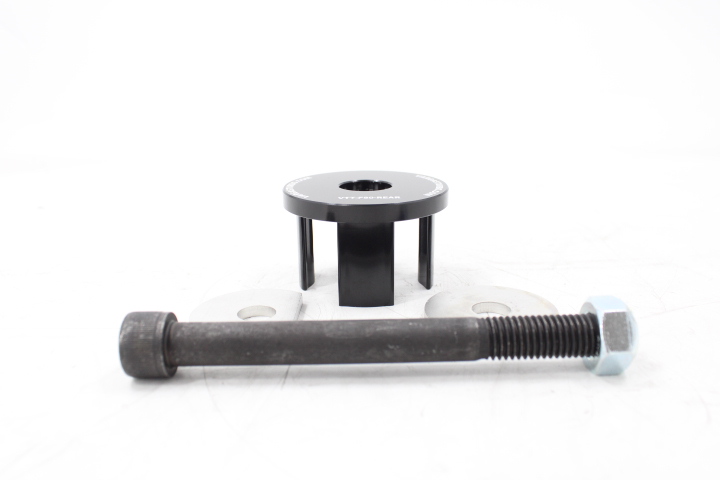

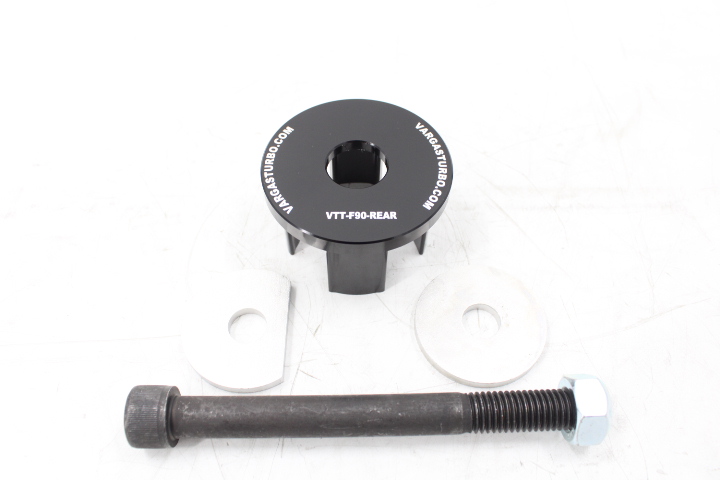

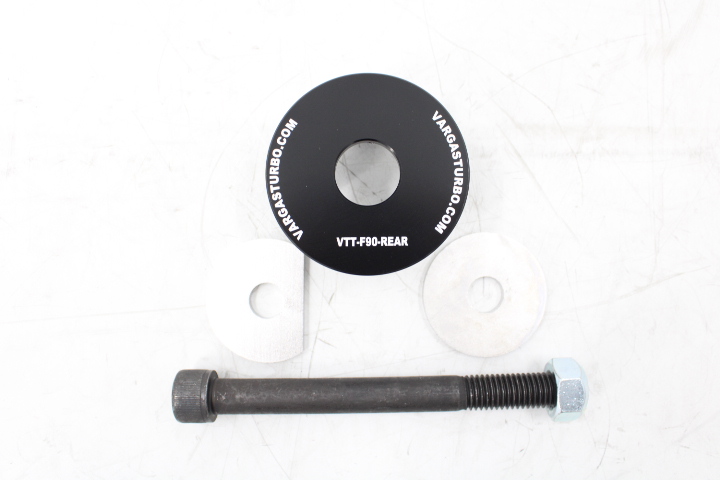

Kit Includes

• One CNC-machined Billet Differential Bushing Insert
• Two 49mm Hardened Steel Washers
• One Grade 12.9 M14 Mounting Bolt
• One M14 Lock Nut

NVH Notice

Because this product reduces movement in the factory rubber bushing, a slight increase in noise, vibration, and harshness (NVH) may be noticeable. Most customers find the increase minimal while appreciating the significant improvement in drivetrain control and stability.

Fitment

BMW F90 M5 (2018-2023)

BMW F90 M5 Competition (2019-2023)

BMW F91 M8 Convertible (2020-2023)

BMW F92 M8 Coupe (2020-2023)

BMW F93 M8 Gran Coupe (2020-2023)

BMW F91/F92/F93 M8 Competition (2020-2023)
