Description

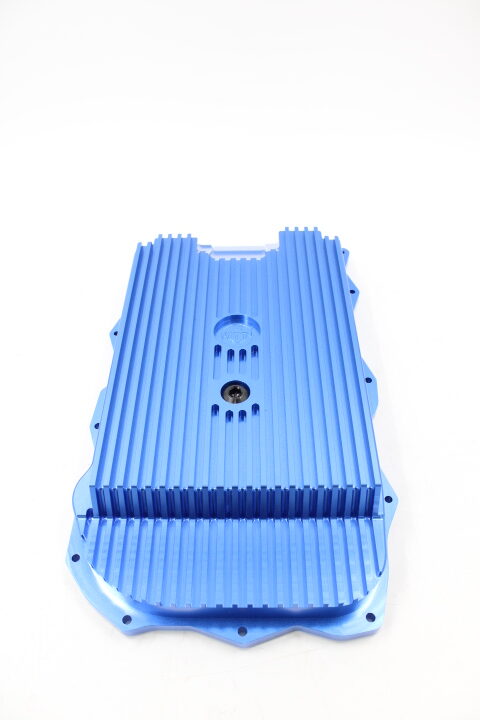

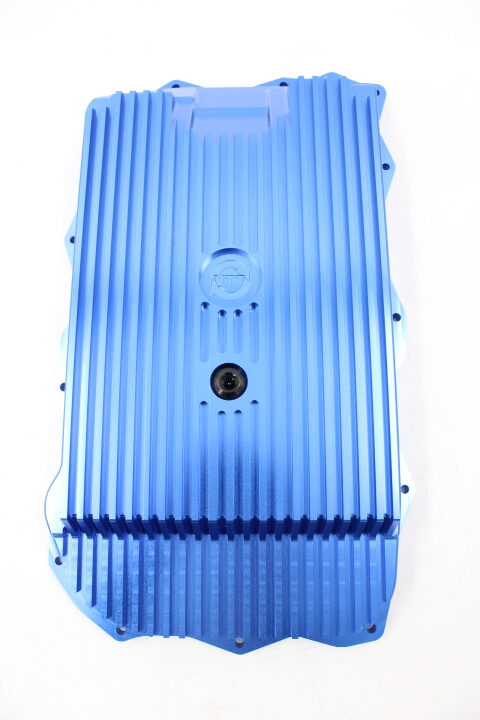

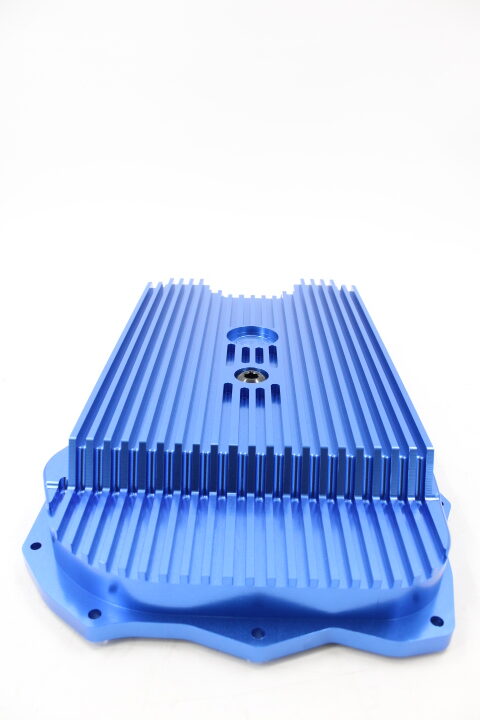

VTT Billet ZF8HP 8-Speed Transmission Pan

VTT is proud to offer our Billet Aluminum ZF8HP Transmission Pan – the ultimate upgrade over the factory plastic or cast aluminum pans.

CNC-machined from 6061-T6 aluminum and anodized in multiple colors, this pan adds durability, serviceability, and performance benefits. With 2 extra quarts of fluid capacity, built-in cooling features, and premium sealing, it’s designed for both daily drivers and high-performance builds.

Key Features

• 6061-T6 Billet Construction – Stronger, longer-lasting, and precision-machined.

• Increased Fluid Capacity – 5.7 QTs (5450ML) vs. the stock 3.7 QTs (3500ML).

• Improved Cooling – Machined external fins aid heat dissipation.

• Integrated Magnet – Rare-earth magnet supports the filter while pulling metal debris from the fluid.

• Premium Seal – Reusable US-made Viton gasket for a leak-free seal.

• Easy Service – -6 ORB magnetic drain plug for quick, clean fluid changes.

• Anodized Finish – Corrosion-resistant and available in multiple colors.

Clearance Notes

• No clearance increase on G8X M3/M4, F9X X3M/X4M, or F90 M5.

• On smaller ZF8HP models with the plastic pan, fitment is confirmed but clearance is reduced.

• Not compatible with large-frame 8HP (Trackhawk, Hellcat, TRX). A version for those is in development.

Kit Includes

• (1) Billet ZF8HP Pan

Fitment

• Most small & mid-frame ZF8HP variants (40/50/51/55/65/70/75/76)

• BMW G8X M3/M4

• BMW F9X X3M/X4M

• BMW F9X M5

• BMW F9X M8

• Toyota A9X Supra

• BMW G2X 3 Series / G3X 5 Series
